Support that keeps your production moving
Next-generation oral pouch manufacturing solutions designed to maximize productivity, ensure precise filling accuracy, and support continuous, high-performance production operations.
High-speed, integrated production solution for oral pouch manufacturing with stable forming, controlled filling and automation-ready line integration. Designed for industrial-scale output, efficient material handling and reliable quality control in modern pouch production environments.
| PERFORMANCE | PRODUCT RANGE | MACHINE HIGHLIGHTS |
|---|---|---|
| 600 pouches/min unit speed | 0.3 – 1.2 g fill weight | Automatic roll change |
| 2400 pouches full line speed | 28 – 40 mm pouch length | Automatic web splicing |
| OEE >=75% | 30 – 37 mm fleece width | Automatic powder feeding |
| Reject rate <=3% | 12 – 25 pcs/can | Remote diagnostics ready |
600 pouches/min
Automatic forming and filling for high-volume oral pouch production.
28–40 mm
Prepared for common pouch sizes with stable sealing and recipe flexibility.
160 cans/min
Suitable for connection with downstream can filling, checking and reject modules.

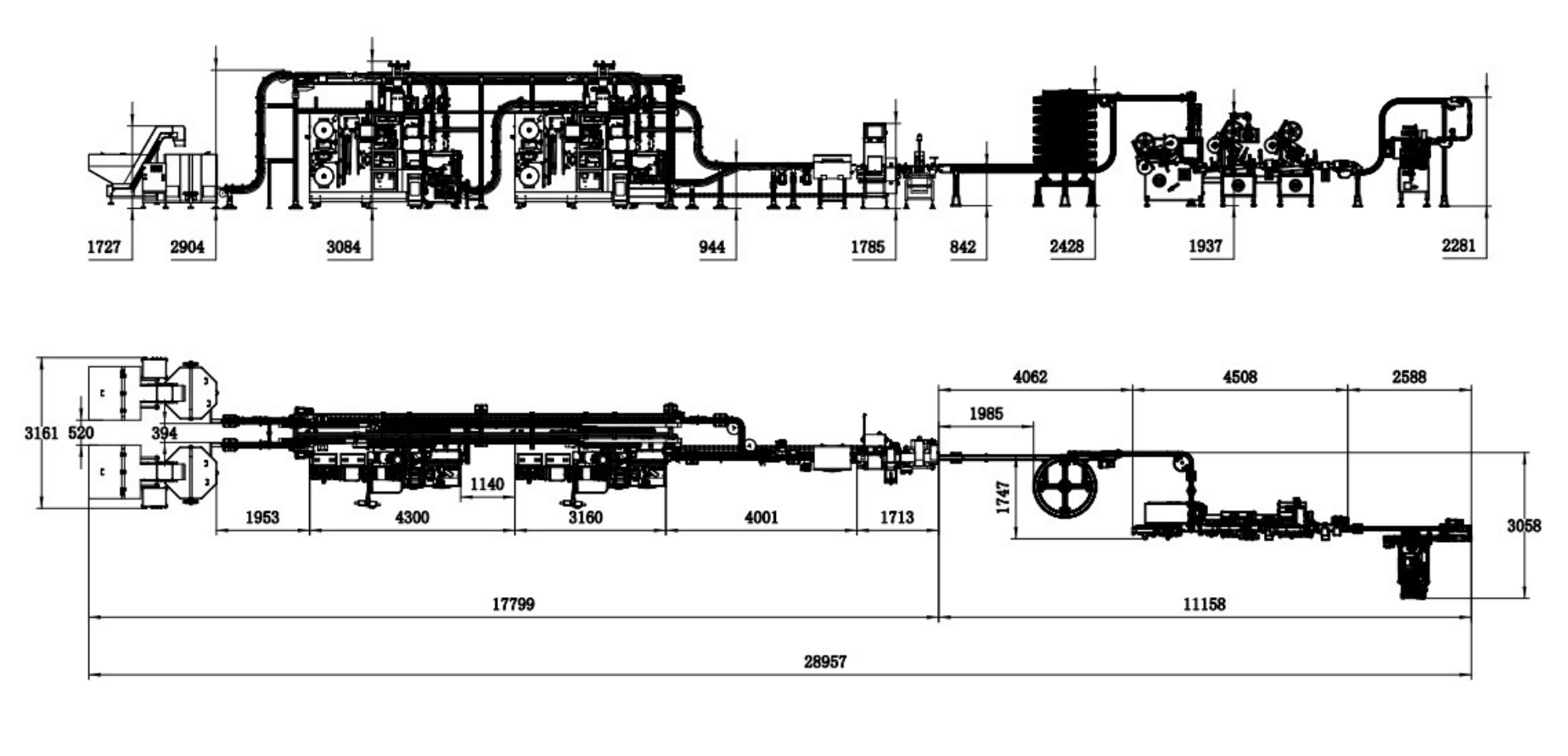

TCANP-600 is designed for modular line configuration and can be arranged from 2 to 4 Maker & Packer units depending on the required output, available floor space and downstream integration concept. The layout can be adapted to suit plant utility points, operator access requirements and future expansion plans.

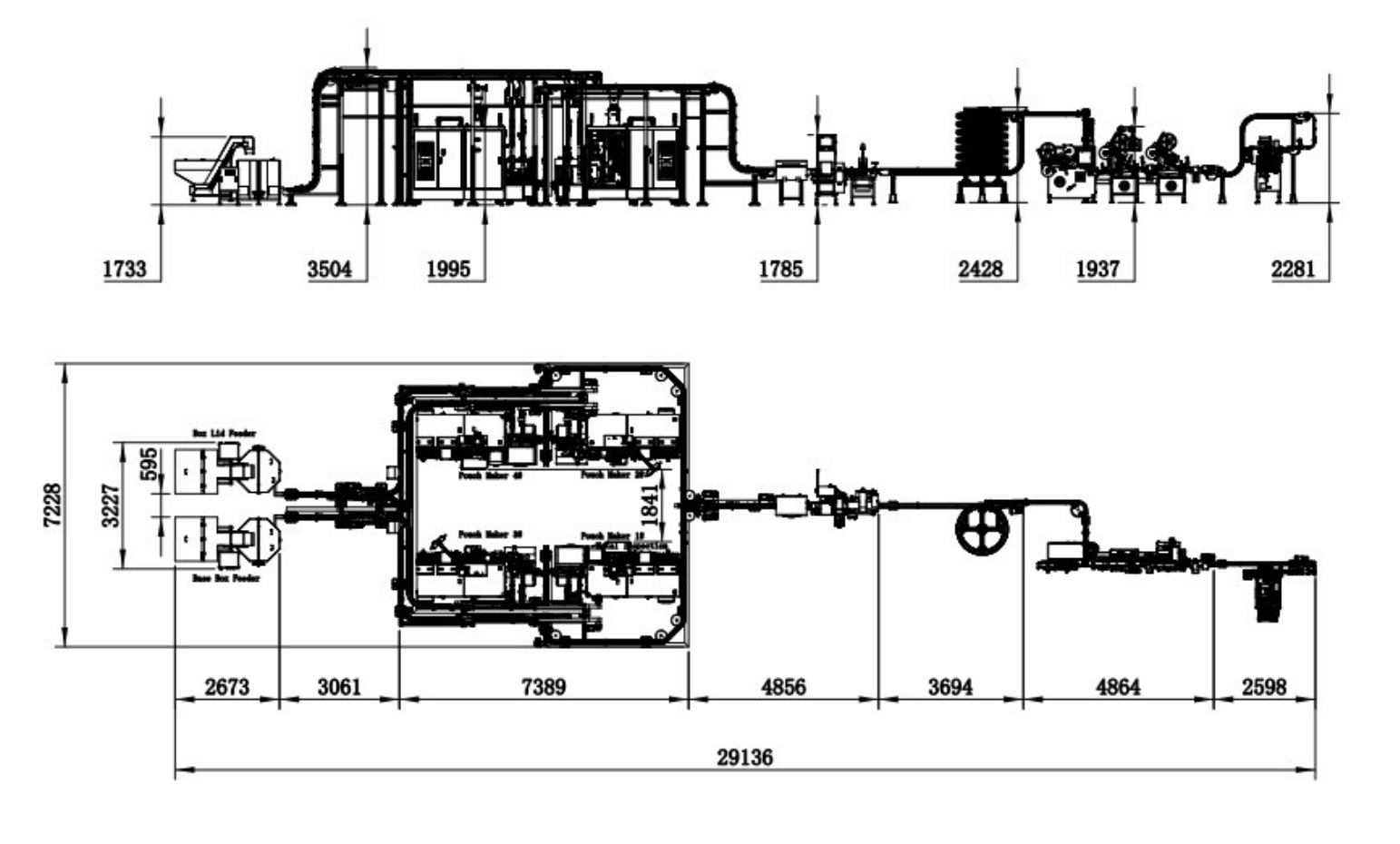

Flexible concept: 2-unit layout for standard output expansion, up to 4-unit layout for higher-capacity line architecture.
Suitable for compact line configuration and staged capacity build-up.
Configured for higher throughput with integrated feeding and inspection flow.
Titan NP-600 is engineered with a strong focus on automation, production continuity, andindustrial usability.
Suggested Bullet Points

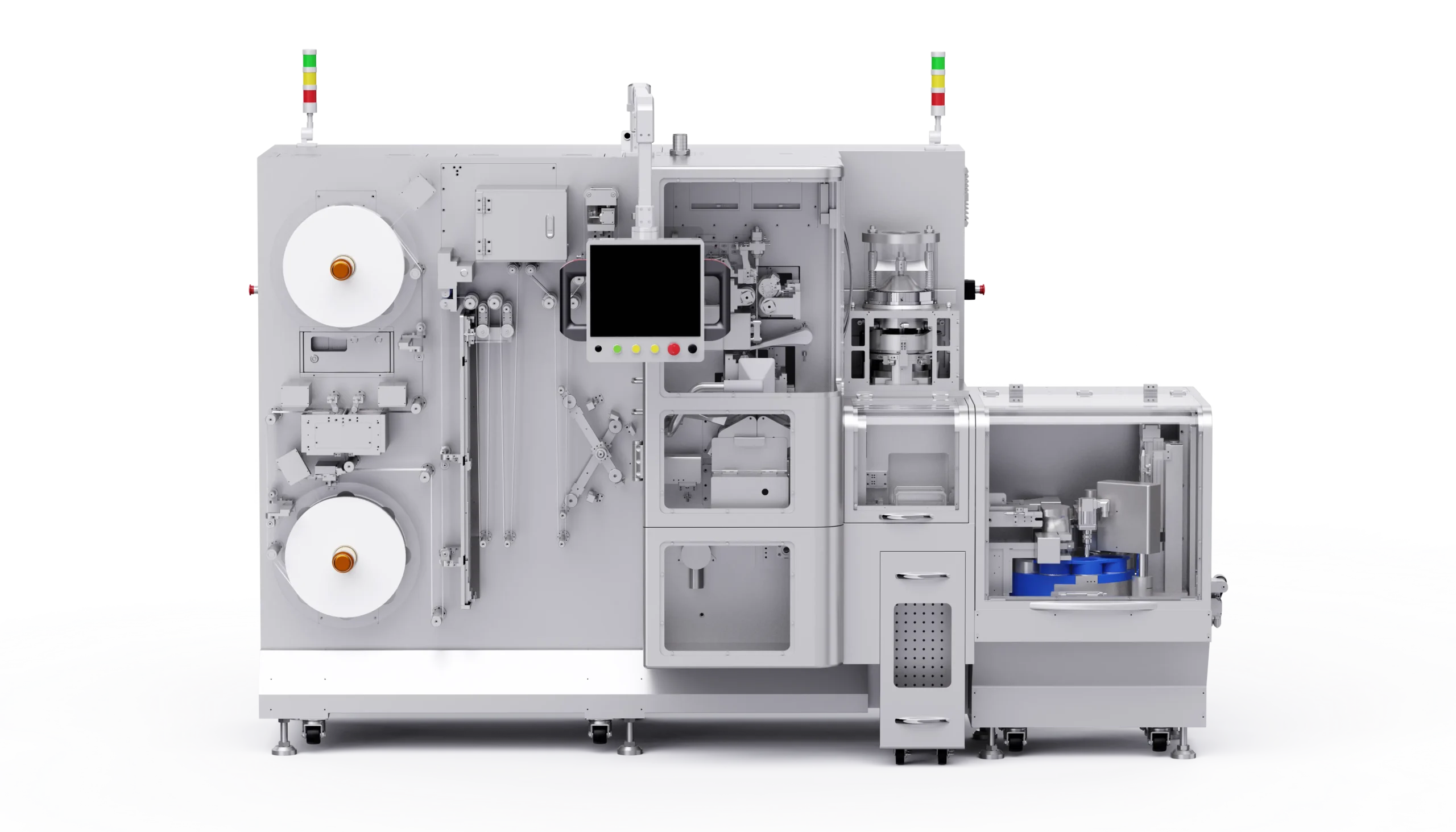

TCANP-600 combines automatic pouch forming, filling and core process control in one integrated production platform. The machine is built for stable output, efficient material usage and straightforward integration into high-volume oral pouch operations.
| Parameter | Specification |
|---|---|
| Pouch forming speed | 600 pouches/min |
| Can filling speed | 180 cans/min |
| OEE | >=80% |
| Reject rate | <=3% (automatic vision rejection) |
| PRODUCT SPECIFICATION | Specification |
|---|---|
| Pouch filling weight | 0.3 – 1.2 g |
| Pouch length | 28 – 40 mm |
| Nonwoven fleece width | 30 – 37 mm |
| Pouches per can | 12 – 25 pcs/can |
| AUTOMATION & SAFETY | Specification |
|---|---|
| Control system | PLC Beckhoff |
| Motion control | Bosch Rexroth Servo |
| Sensor system | SICK & KEYENCE |
| Safety system | Pilz interlocked safety doors and industrial safety circuit |
| Compliance | Designed according to CE requirements; IEC-based electrical design |
| UTILITIES & DIMENSIONS | Specification |
|---|---|
| Power supply | 380V / 50Hz / 3 Phase or 480V / 60Hz / 3 Phase |
| Installed power (single maker) | 24 kW |
| Compressed air pressure | 0.6 – 0.8 MPa |
| Air consumption | Approx. 600 – 800 L/min |
| Single pouch maker | 4900 (L) x 1650 (W) x 3300 (H) mm |
| Complete production line | 17100 (L) x 5300 (W) x 3500 (H) mm |
| Machine weight | Approx. 2500 kg per maker |
